Components

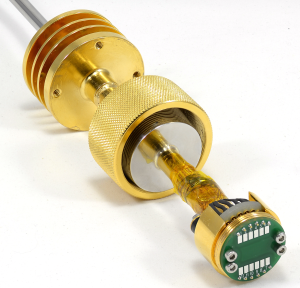

Applied Analysis Platform

Resistivity and Hall Effect Module (RHEM) for C-Mag magnet systems. AC/DC resistivity + Hall effect measurements, <1.8K to 325K.

Operating temperature

<1.8K to 325K

Sample mount OD

25 mm

Sample interconnects

12 wires

Measurement types

AC/DC, Hall effect

50-150Amp Superconducting Buss Bar 24″ (pair)

Superconducting buss bars (pair) for vapor-cooled or DCO current leads. 50–150 amp, 24″ standard length.

SKU

BB 50-150

Current range

50 to 150 A

Length options

24″/30″/32″/36″

Weight

1 lb

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Leads

Vapor-cooled current leads for LHe environments. Ratings 50 A to 3000 A. Suits persistent and swept-field magnet operation.

Current range

50 A to 3000 A

Cooling

Helium vapor

Configurations

12 standard + custom

Helium Monaxial Vapor-Cooled Current Lead Pair M50

50 A rated monaxial vapor-cooled current lead pair.

SKU

M50

Current rating

50 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M75

75 A rated monaxial vapor-cooled current lead pair.

SKU

M75

Current rating

75 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M100

100 A rated monaxial vapor-cooled current lead pair.

SKU

M100

Current rating

100 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M150

150 A rated monaxial vapor-cooled current lead pair.

SKU

M150

Current rating

150 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M200

200 A rated monaxial vapor-cooled current lead pair.

SKU

M200

Current rating

200 A

Weight

3 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M250

250 A rated monaxial vapor-cooled current lead pair.

SKU

M250

Current rating

250 A

Weight

3 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M300

300 A rated monaxial vapor-cooled current lead pair.

SKU

M300

Current rating

300 A

Weight

3 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M400

400 A rated monaxial vapor-cooled current lead pair.

SKU

M400

Current rating

400 A

Weight

4 lbs

Dimensions

28 × 3 × 3 in

Helium Monaxial Vapor-Cooled Current Lead Pair M500

500 A rated monaxial vapor-cooled current lead pair.

SKU

M500

Current rating

500 A

Weight

4 lbs

Dimensions

28 × 3 × 3 in

Direct Charge

Direct-payment tool for arbitrary transaction values in whole-dollar increments.

SKU

MISC

Category

Special Products

Base price

$1.00

Helium Monaxial Vapor-Cooled Current Lead Pair M1000

1000 A rated monaxial vapor-cooled current lead pair.

SKU

M1000

Current rating

1000 A

Weight

20 lbs

Helium Monaxial Vapor-Cooled Current Lead Pair M2000

2000 A rated monaxial vapor-cooled current lead pair.

SKU

M2000

Current rating

2000 A

Weight

25 lbs

Helium Monaxial Vapor-Cooled Current Lead Pair M3000

3000 A rated monaxial vapor-cooled current lead pair.

SKU

M3000

Current rating

3000 A

Weight

30 lbs

Duty-Cycle Optimized Current Leads

DCO current leads for persistent-mode magnets. B100 consumes only 70 mL/hr LHe in static mode.

Current range

50 – 200 A

Cooling

Helium vapor-cooled

Operating mode

Persistent-mode

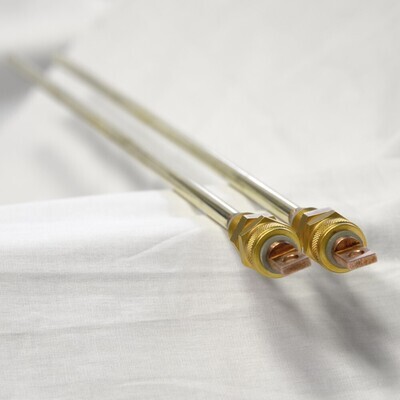

DCO Current Lead Pair: B50

50 A rated DCO current lead pair. Exceptional static-mode performance for persistent-mode magnets.

SKU

B50

Current rating

50 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

DCO Current Lead Pair: B75

75 A rated DCO current lead pair. Exceptional static-mode performance for persistent-mode magnets.

SKU

B75

Current rating

75 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

DCO Current Lead Pair: B100

100 A rated DCO current lead pair. Exceptional static-mode performance for persistent-mode magnets.

SKU

B100

Current rating

100 A

Weight

2 lbs

Dimensions

28 × 3 × 3 in

Hall Effect Sensors

Discontinued product line. Contact sales for pricing and legacy support.

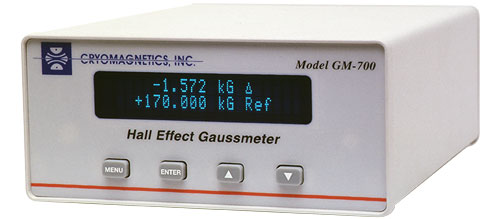

Model GM-700 Hall Effect Gaussmeter

High-precision Hall Effect Gaussmeter with 5¾ digit display, autoranging 300 mG to 300 kG, delta function, dual alarms, and RS-232 interface.

Display

5¾ digits (2-line VFD)

Autoranging

300 mG to 300 kG

Field units

Gauss or Tesla

Interface

RS-232, IEEE-488 opt

Resolution

18-bit

Liquid Helium Transfer Lines

All-welded stainless steel LHe transfer lines with vacuum-jacketed flexible piping. Standard 71.5″ flexible section; custom lengths on request.

Construction

Vacuum-jacketed steel

Flexible section

71.5″

Storage dewar leg

0.5″ O.D., 60″

Stinger

0.375″ O.D., 32″

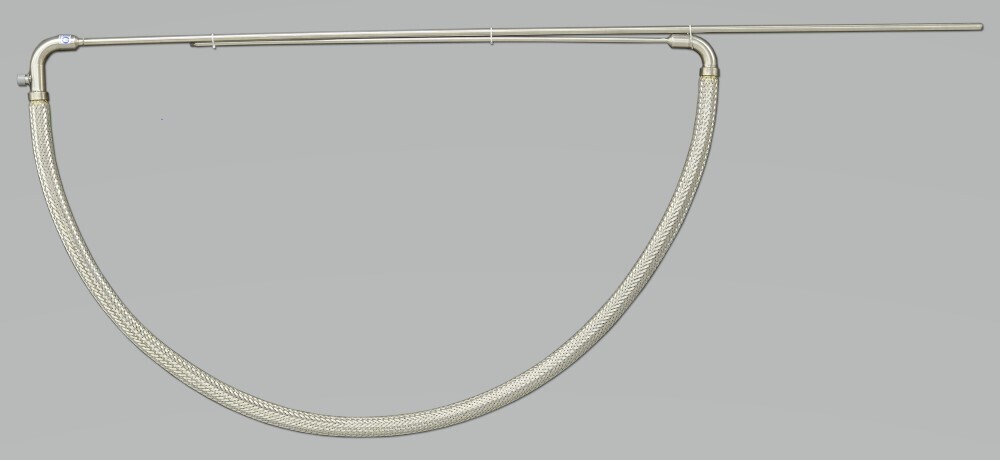

Liquid Helium Transfer Line: 6′ Flex Section

6′ flex section LHe transfer line. Superinsulated stainless steel with 71.5″ flexible section. Optional integrated LM-510-compatible level sensor.

SKU

LHe Line 6′ Flex

Flexible section

71.5″

Storage dewar leg

0.5″ O.D., 60″

Stinger

0.375″ O.D., 32″

Weight

20 lbs

Dimensions

25 × 4 × 68 in

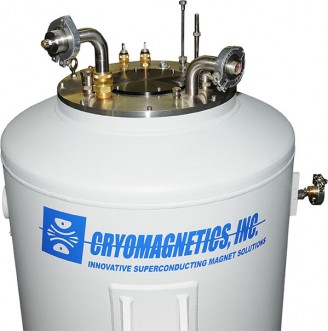

Liquid Helium Dewars

Bucket-style LHe dewars for superconducting magnet systems. Top- or bottom-loading; aluminum/fiberglass or stainless steel construction.

Construction

Aluminum or stainless

Loading style

Top or bottom

Options

LN2, lambda, belly

Liquid Helium Level Sensors

Superconducting LHe level sensors. Low helium consumption, proper venting in any orientation. Three diameters, sensing lengths from 1 to 200 cm.

Outside diameter

4.76 / 6.35 / 9.52 mm

Active sensing length

1 to 200 cm

Overall length

ASL + 2 cm (standard)

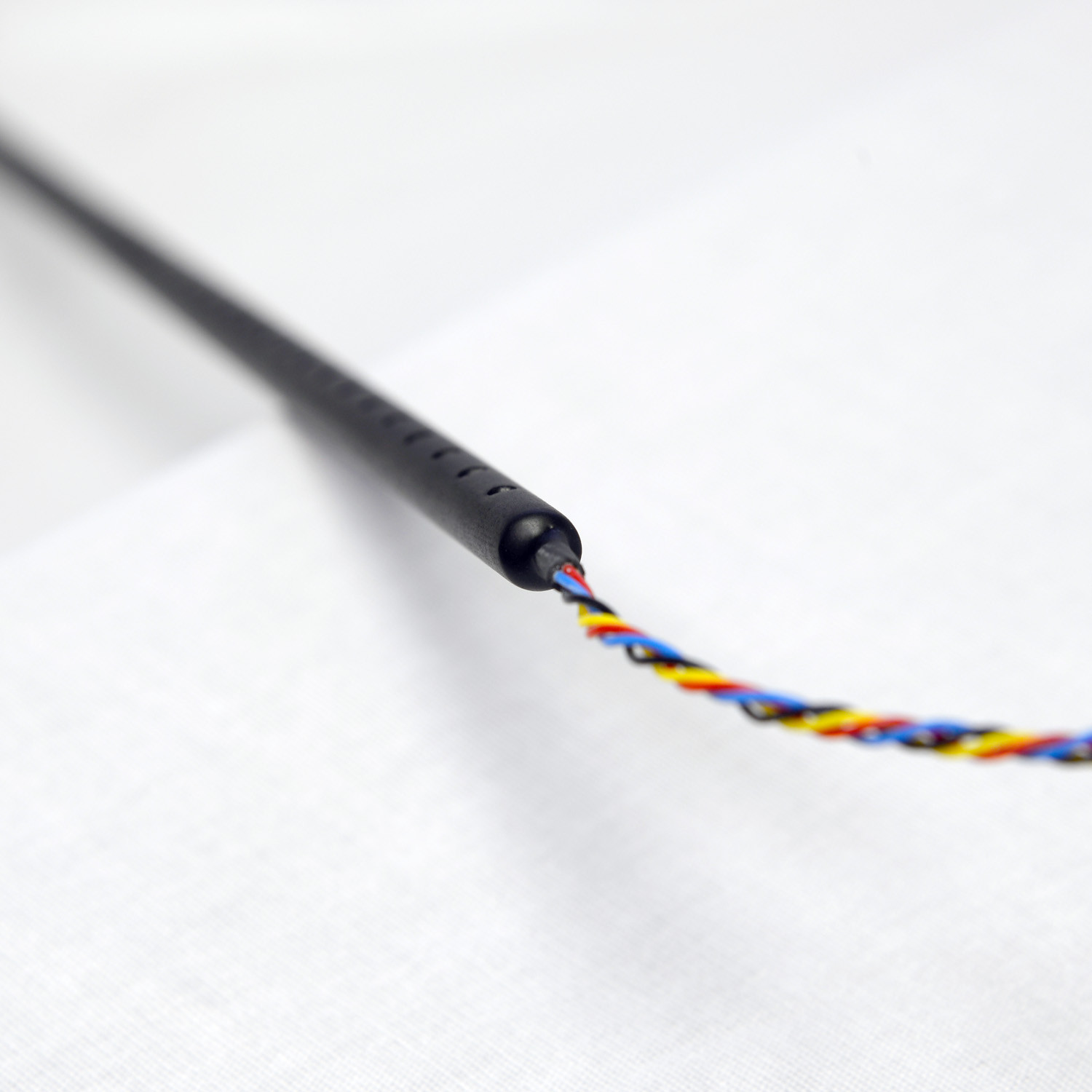

Model 2D Liquid Helium Level Sensor (3 – 45 cm OAL)

Small-diameter (3/16″) LHe level sensor. Active sensing lengths 1–43 cm.

SKU

Model 2D LHe Sensor

Outer diameter

4.76 mm (3/16″)

Active sensing length

1 to 43 cm

Overall length

3 to 45 cm

Weight

2 lbs

Dimensions

10 × 10 × 10 in

Model 3D Liquid Helium Level Sensor (3 – 111 cm OAL)

Standard-diameter (1/4″) LHe level sensor. Active sensing lengths 1–109 cm.

SKU

Model 3D LHe Sensor

Outer diameter

6.35 mm (1/4″)

Active sensing length

1 to 109 cm

Overall length

3 to 111 cm

Weight

2 lbs

Dimensions

10 × 10 × 10 in

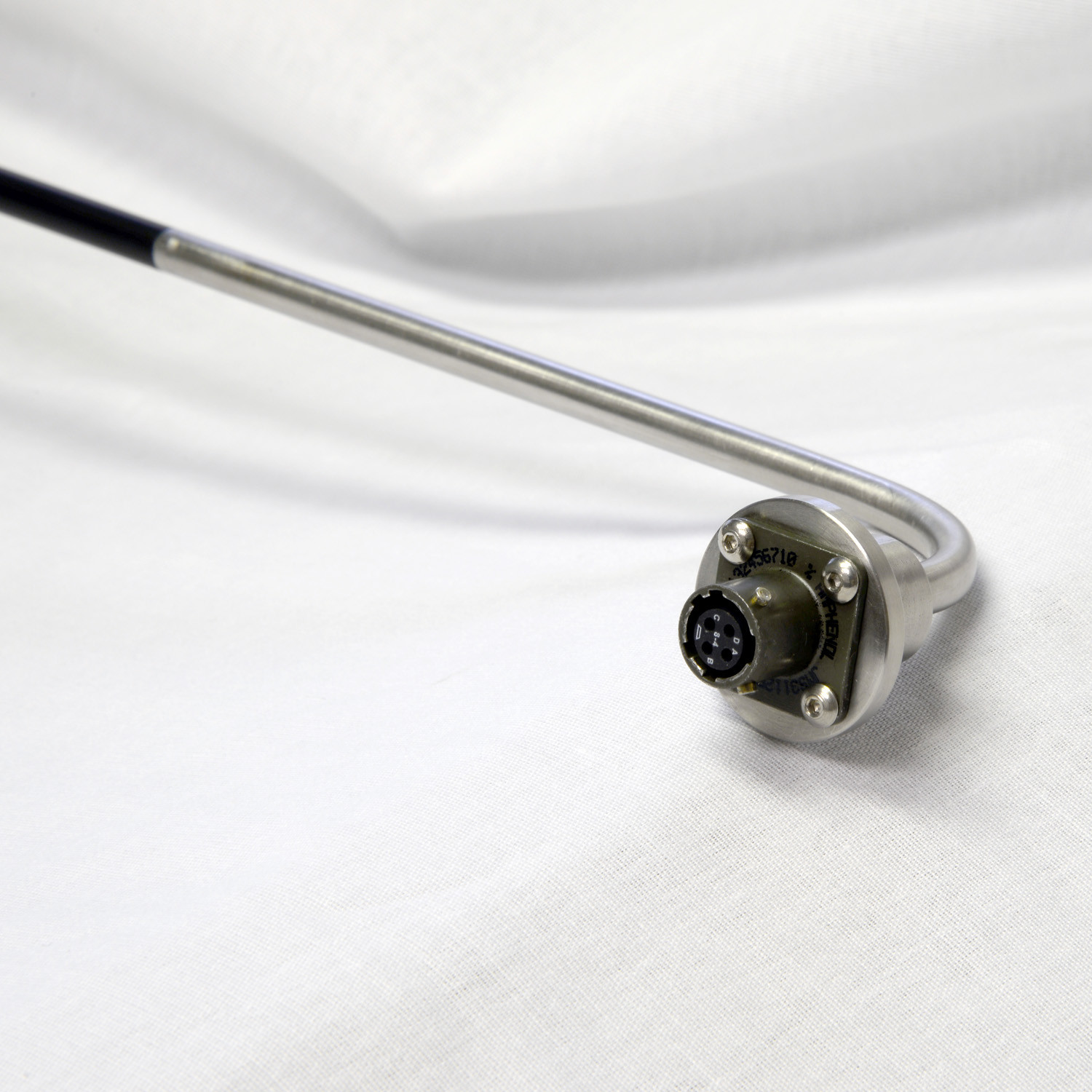

Model 3DA LHe Level Sensor (16 – 111 cm OAL)

1/4″ LHe level sensor with hermetically-sealed connector. Active sensing lengths 1–109 cm.

SKU

Model 3DA LHe Sensor

Outer diameter

6.35 mm (1/4″)

Active sensing length

1 to 109 cm

Overall length

16 to 111 cm

Weight

3 lbs

Dimensions

10 × 10 × 10 in

Model 4D Liquid Helium Level Sensor (112 – 202 cm OAL)

Large-diameter (3/8″) LHe level sensor. Active sensing lengths 110–200 cm.

SKU

Model 4D LHe Sensor

Outer diameter

9.52 mm (3/8″)

Active sensing length

110 to 200 cm

Overall length

112 to 202 cm

Weight

2 lbs

Dimensions

20 × 20 × 20 in

Model 4D Flexible LHe Level Sensor (3 – 202 cm OAL)

Flexible 3/8″ LHe level sensor for horizontal room-temperature bore dewars.

SKU

Model 4D Flex Sensor

Outer diameter

9.52 mm (3/8″) flex

Active sensing length

1 to 200 cm

Overall length

3 to 202 cm

Weight

4 lbs

Dimensions

10 × 10 × 10 in

Liquid Nitrogen Level Sensors

Capacitance-based LN2 level sensors. Stainless steel, active lengths up to 200 cm, LM-510 compatible.

Technology

Capacitance-based

Construction

Stainless steel

Active length

Up to 200 cm

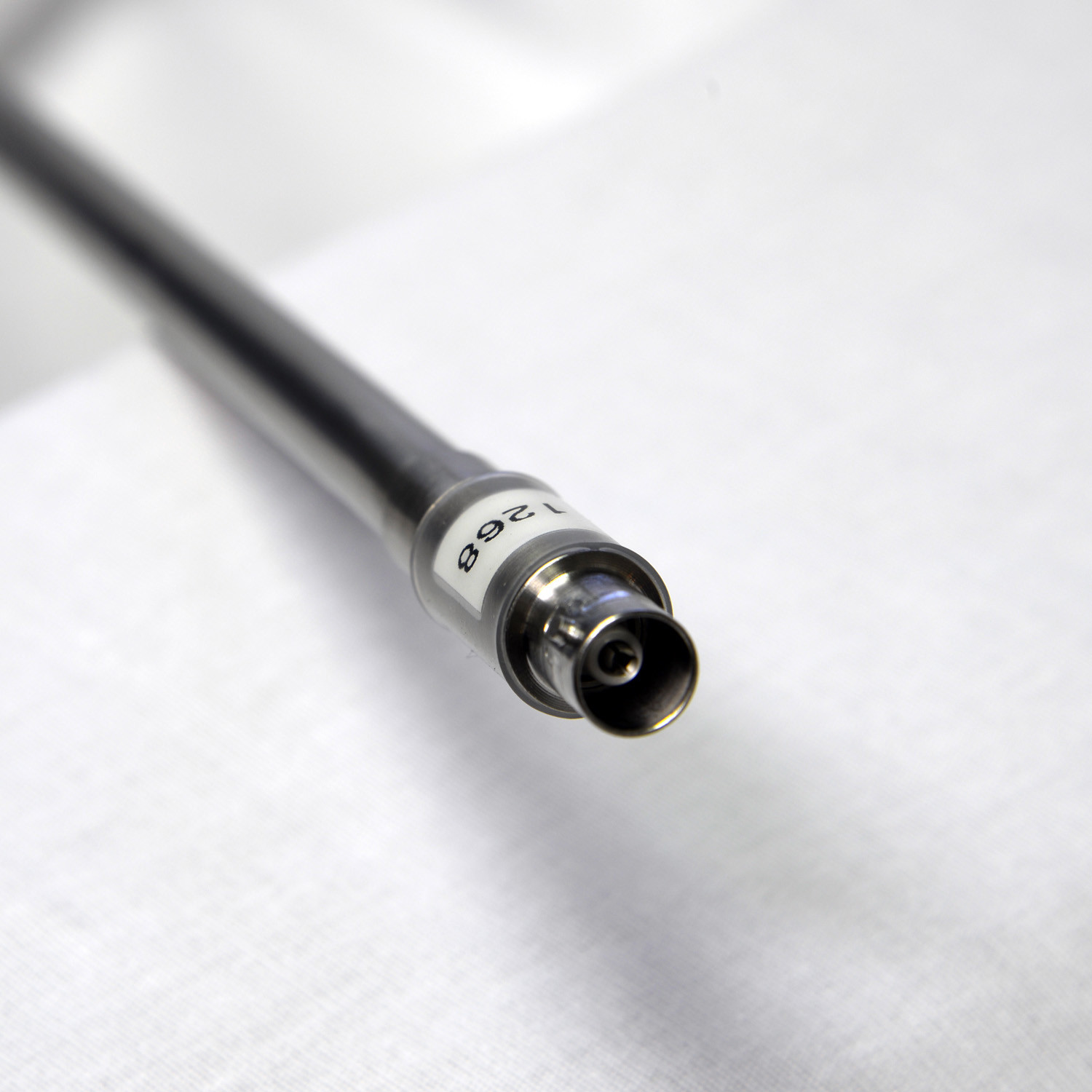

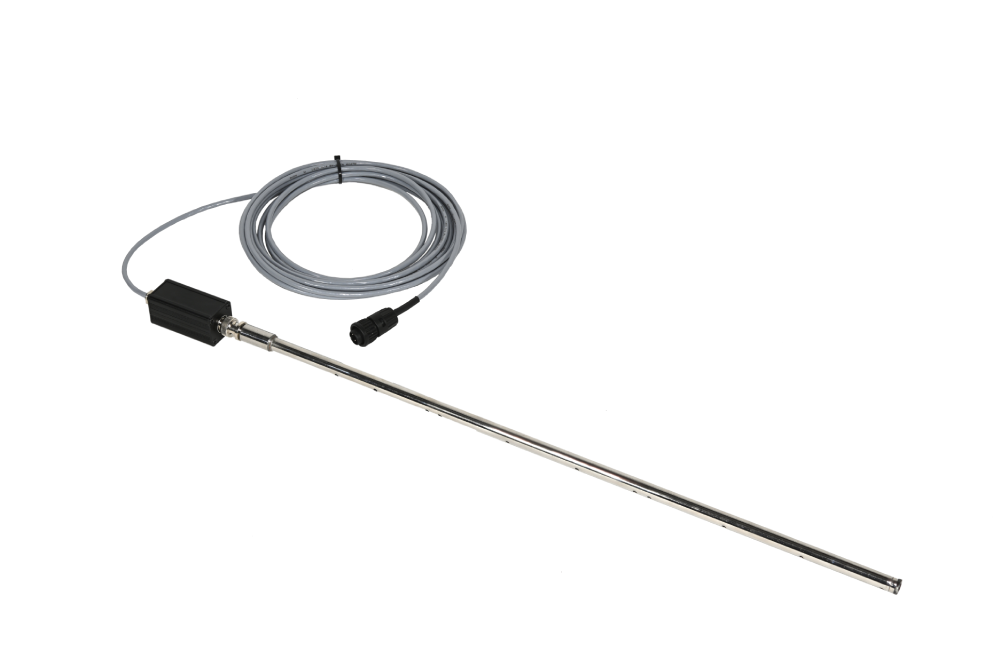

Capacitive Level Sensor (8 – 200 cm) OAL

Capacitance-based liquid nitrogen level sensor. 9.52 mm (3/8″) O.D., ASL 1–193 cm.

SKU

Capacitive Sensor

Outer diameter

9.52 mm (3/8″)

Active sensing length

1 to 193 cm

Overall length

8 to 200 cm

Construction

Stainless steel

Weight

2 lbs

Dimensions

80 × 3 × 3 in

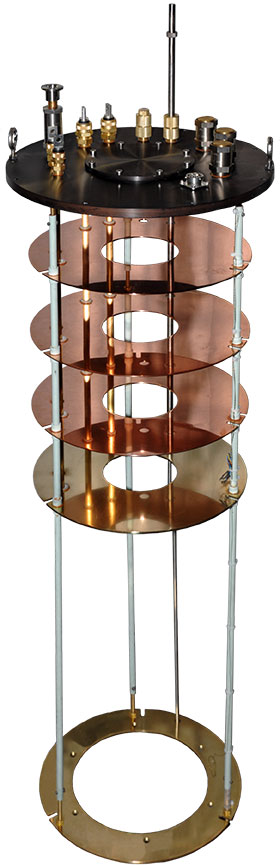

Magnet Support Assemblies

Magnet support assemblies with thermal baffles, vapor-cooled current leads, quench relief valve, and optional lambda plate for sub-4.2K operation.

Current leads

B-100, 100 A DCO

Level sensor

Superconducting LHe

Cable length

15 ft cable

Lambda plate option

2.2K magnet operation

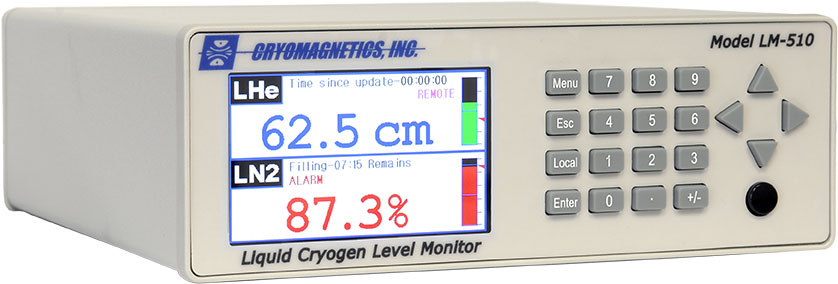

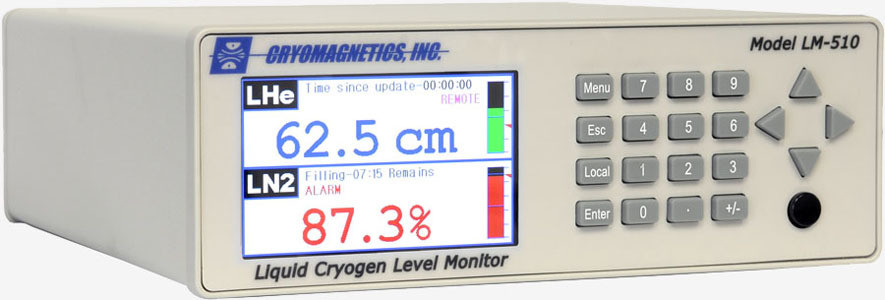

Model LM-510 Liquid Cryogen Monitor

Cryomagnetics' next-generation cryogen level monitor. Single or dual channel LHe/LN2, 240×400 TFT display, USB and Ethernet standard.

Display

240 × 400 TFT LCD

Interfaces

USB, Ethernet

Analog output

4-20mA, 0-10V/ch

Single Channel LHe Level Monitor

Single-channel LM-510 for one liquid helium level sensor.

SKU

LM-510-10

Weight

5 lbs

Dimensions

12 × 9 × 8 in

Dual Channel LHe Level Monitor

Dual-channel LM-510 for two liquid helium level sensors.

SKU

LM-510-11

Weight

5 lbs

Dimensions

12 × 9 × 8 in

Dual Channel LHe/LN2 Level Monitor

Dual-channel LM-510 for one LHe + one LN2 level sensor.

SKU

Model LM-510-12

Weight

5 lbs

Dimensions

12 × 9 × 8 in

Single Channel LN2 Level Monitor

Single-channel LM-510 for one liquid nitrogen level sensor.

SKU

LM-510-20

Weight

5 lbs

Dimensions

12 × 9 × 8 in

Dual Channel LN2 Level Monitor

Dual-channel LM-510 for two liquid nitrogen level sensors.

SKU

LM-510-22

Weight

5 lbs

Dimensions

12 × 9 × 8 in

Replacement External LN2 Oscillator and Cable

Replacement external oscillator + 15 ft cable for LM-510 LN2 channel.

SKU

Ext-Osc

Cable length

15 ft

Compatibility

LM-510 LN2 channel

Weight

1 lb

Dimensions

2 × 2 × 2 in

Model HRC-110 Helium Recondenser Controller

Controller for helium recondenser systems — regulates recondensation rate to maintain positive helium chamber pressure.

Model HRC-100 Helium Recondenser Controller

Earlier-generation helium recondenser controller with USB interface. Manual and driver available for download.

Model 612 and 614 Cryogenic Temperature Monitors

Discontinued cryogenic temperature monitors. Manuals, utility software, and LabVIEW drivers available for legacy users.

Model LM-500 Liquid Cryogen Level Monitor

Discontinued predecessor to the LM-510. Manuals and LabVIEW 6.1 drivers available for legacy users.

Model 1200 S/H Liquid Helium Level Monitor

Discontinued sample-and-hold liquid helium level monitor. Manual available for legacy users.

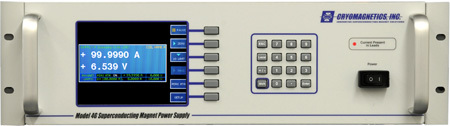

Model 4G Bipolar Power Supplies for Superconducting Magnets

Cryomagnetics' 4th-generation bipolar power supply for superconducting magnets. 4-quadrant true bipolar with USB, Ethernet, and IEEE-488.2 standard.

Max Current Output

±100 – ±200 A

Max Output Voltage

±10.00 V

Model 4G-100 Bipolar Power Supply

±100 A / ±10 V bipolar output up to 800 watts.

SKU

4G-100

Weight

50 lbs

Dimensions

30 × 24 × 13 in

Model 4G-150 Bipolar Power Supply

±150 A / ±10 V bipolar output up to 1650 watts.

SKU

4G-150

Weight

70 lbs

Dimensions

30 × 24 × 13 in

Model 4G-200S Bipolar Power Supply

Single-output bipolar superconducting magnet power supply. ±200 A up to 1650 watts.

SKU

Model 4G-200S

Weight

70 lbs

Dimensions

30 × 24 × 13 in

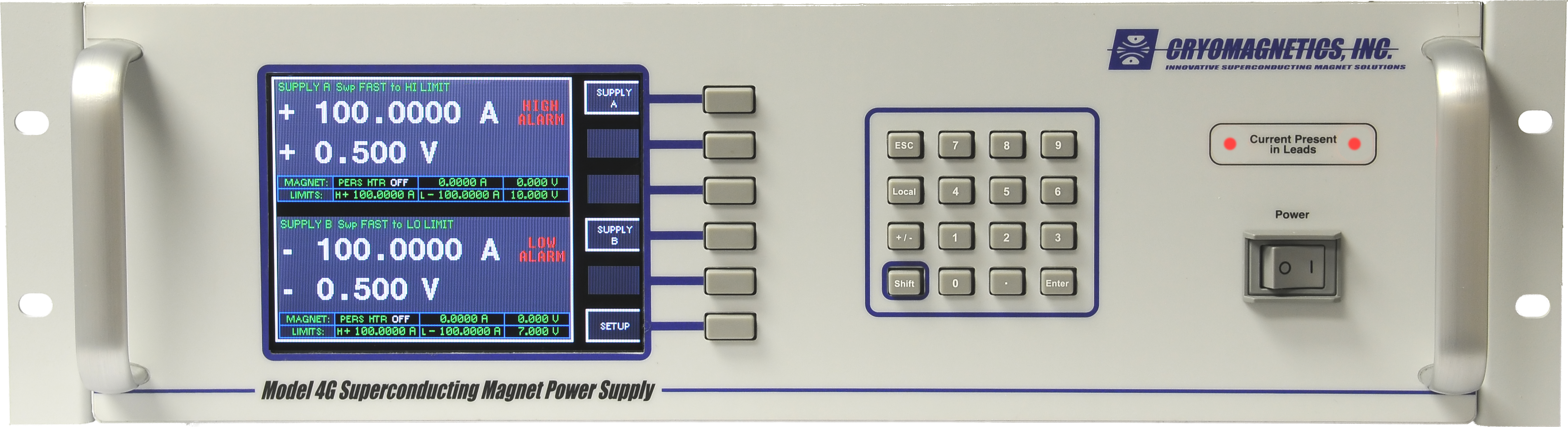

Model 4G-Dual (100/100) Bipolar Power Supply

Dual ±100 A / ±10 V outputs, 800 watts each, independently operable.

SKU

4G-Dual 100/100

Weight

80 lbs

Dimensions

30 × 24 × 13 in

Model 4G-100/SHIM Bipolar Power Supply

±100 A / ±10 V bipolar output with SHIM-coil charge/discharge capability.

SKU

Model 4G-100/SHIM

Weight

50 lbs

Dimensions

30 × 24 × 13 in

Model 4G-200S/SHIM Bipolar Power Supply

±200 A bipolar output up to 1650 watts, with SHIM-coil capability.

SKU

Model 4G-200S/SHIM

Weight

70 lbs

Dimensions

30 × 24 × 13 in

Temperature Sensors

Model PT-100 platinum resistance sensor for moderate-accuracy monitoring. Precision options (silicon diodes, ruthenium oxide) on request.

Model

PT-100

Type

Platinum resistance

Application

Moderate-accuracy

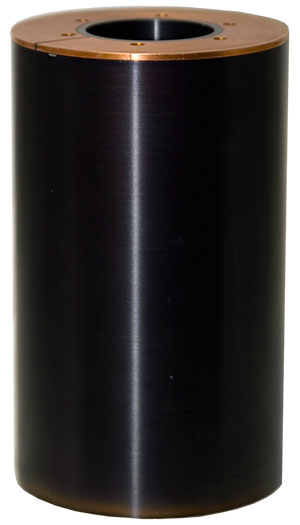

NbTi Solenoids

Multi-filamentary NbTi solenoid magnets in copper matrix, epoxy impregnated and fully quench protected. Standard 5T–9T designs with 20% field boost at 2.2K.

Field range

5T–9T (4.2K)

Bore sizes

1.00″ to 3.00″

2.2K boost

+20% rated field

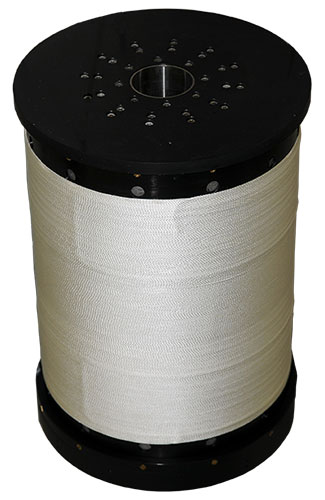

High Field Nb3Sn Solenoids

Nested NbTi/Nb3Sn coil solenoids from 10T to 19T with persistent switch, quench protection, and 2.2K operation options.

Field range

10T–19T (4.2K)

Bore sizes

1.50″ to 3.00″

Operation

Persistent, 45Ω switch

Standard Split Pair Magnets

Split-pair superconducting magnets providing radial port access for optical experiments, up to 11T at 4.2K with NbTi and Nb3Sn windings.

Field range

3T–11T (4.2K)

Split access

0.50″ to 5.00″

Windings

NbTi/Nb3Sn epoxy

Multi-axis Superconducting Vector Magnets

Two- and three-axis vector magnets with central solenoid and flanking split pairs, offering 360° planar or spherical rotation of the magnetic vector.

Configurations

2-axis or 3-axis

Standard bores

2.0″ and 2.5″

Peak field

up to 9T central

Nuclear Demagnetization Magnets

High-field superconducting magnets with series-wound cancellation coils for ultra-low temperature research below 4mK and dilution refrigerator systems.

NbTi range

9T @ 4.2K / 11T @ 2.2K

Nb3Sn range

17T @ 4.2K/19T @ 2.2K

Target temp

<4mK sample

High Homogeneity Solenoids

Superconducting solenoids with 10 ppm homogeneity in trim coils and down to 0.1 ppm with second-order shim coils for NMR-quality experiments.

Baseline homogeneity

≤100 ppm

With trim coils

10 ppm

With shims

1 or 0.1 ppm

HTS (High Temperature Superconductor)

Superconducting magnet systems built with BSCCO-2223 and YBCO high temperature superconducting tape for higher-field, larger-bore, and cryogen-free applications.

Materials

BSCCO-2223, YBCO

Reference system

3.57T @ 37K, 3.5″ bore

Application

Gyrotron, custom OEM

Ultra-Low Current Superconducting Magnet

Superconducting magnets designed with patented processes for ultra-low operating current — ideal for ADR applications and vacuum-installed instruments.

Field examples

2.0T–5.0T (4.2K)

Operating current

as low as 1.5 A

Application

ADR, vacuum-installed

Custom and OEM Superconducting Magnet Systems

Custom-designed and build-to-print superconducting magnets, dewars, cryogenic accessories, and instrumentation for gyrotron, NMR, ICR, SQUID, VSM and other OEM systems.

Field strength

19T sol., 10T split

Model

Custom/build-to-print
